HÜRKUŞ MISSION AIRCRAFT HÜRKUŞ MISSION AIRCRAFT

The HÜRKUŞ Mission Aircraft has been equipped with mission capabilities based on the New Generation Basic Trainer Aircraft. It has been developed with an indigenous design to perform combat training, weapons training, and special mission training.

The HÜRKUŞ Mission Aircraft aims to fulfill pilot training requirements and to serve in light attack and armed reconnaissance missions with low cost and high precision.

The HÜRKUŞ Mission Aircraft, a light attack and armed reconnaissance variant, provides a cost-effective and flexible solution against asymmetric threats on today's battlefields. Preserving the advanced training capabilities of the HÜRKUŞ Basic Trainer Aircraft, it enables users to undertake challenging missions in high-altitude and demanding terrains, day and night, with its five external load stations, indigenous and national avionic suites and equipment, EO/IR Camera, 2.75” Laser Guided Missiles, External Fuel Tank, Smart Micro Munitions, Counter Measure Dispensing System (CMDS), Semi-Prepared Runway Operation capability, and a substantial payload capacity of up to 650 kg.

The first export has already been made to the Nigerian Air Force, followed by deliveries to the Chadian Air Force. The Mission Aircraft variant has accumulated more than 1,000 hours of mission flights.

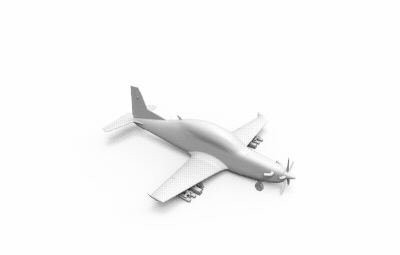

3D Model Loading
TECHNICAL DATA
Dimensions And Weight
Performance
Weapon Systems
Roles
Features
Wing Span
10,91 m
Length
11,17 m
Height
3,80 m
Wing Area
16,30 m2
Fuselage Length
10,8 m
Fuselage Height
2,16 m
Fuselage Width
1,01 m
MTOW
9.980 lb / 4.530 kg
Endurance
4,3 saat / hrs
Fuel Capacity(Internal/External)
1.160 Ib (526 kg) 650 lb (300 kg)
Maximum Cruise Speed
278 kts / 515 km/h
Maximum RoC
3.297 fpm / 16,75 m/s
Service Ceiling
30.000 ft / 9.144 m
Maximum Range
750 NM / 1.390 km
Positive / Negative G Limit
+5/-2,4 G
Laser Guided Missile (Anti-tank, Anti-personnel)
250 lb/500 lb Laser & INS/GPS Guided Bombs
2.75 Laser Guided Rockets
External Fuel Tanks
12.7 mm Gun Pod
Laser Guided Micro Munitions
Training Bombs
Intelligence, Surveillance and Reconnaissance
Forward Air Controller (Airborne)
(Combat) Search and Rescue
Patrol and Border Security
Counter-Terrorism Operations
Close Air Support
SAT (Surface Attack)
Satellite Phone
Video Dowlink
Self Protection System
Mission Planning Ground Station
