ŞİMŞEK ŞİMŞEK

Being an indigenous Design and Development program, ŞİMŞEK High Speed Target Drone System program was initiated in 2009 to meet the increased training requirements of the Turkish Armed Forces (TAF).



System will meet the requirements of high speed target drone simulating enemy aircraft and missiles for air to air, ground to air, anti-aircraft gunnery and missile systems’ tracking and firing trainings. Open architecture design of ŞİMŞEK High Speed Target Drone System can be modified with respect to end user requirements.



ŞİMŞEK System, indigenously designed and produced by TUSAS, general features:



  • 45 minutes of endurance
  • Max. Speed 350+ kts
  • Mission altitude between 50 ft (15 m) to 25.000 feet (7600 m) (ASL)
  • 120 km LOS Data Link Range with GCS
  • Catapulte launch and dropping off from aircraft wings
  • Parachute recovery on land or at sea
  • Ability to take-off and control from Navy platforms
  • Structure manufactured with advanced composite technology
  • Compatible with military standards
  • Full autonomous flight mode including take-off and landing with indigenous "GCS Flight Control System" and "Autopilot System"
  • Preprogrammed flight ability to assign waypoints and change during / before flight
  • Return Home & Fail Safe Modes for automatic recovery to a predefined return home point
  • Record and playback of real-time coded digital flight data telemetry
  • Digital maps with moving capability



Payloads:



  • Passive Radar Cross Section Augmenter - Luneberg Lens
  • Active Radar Cross Section Augmenter
  • Miss Distance Indicator (MDI)
  • IR Signature AUgmenter (Hot Nose)
  • Automatic Identification System (AIS)
  • Smoke Generator



Additional Payload Integration Activities:



  • Countermeasures Dispenser System (CMDS)

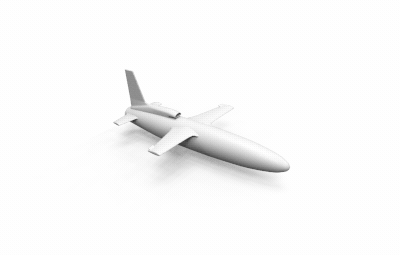

3D Model Loading
FEATURES

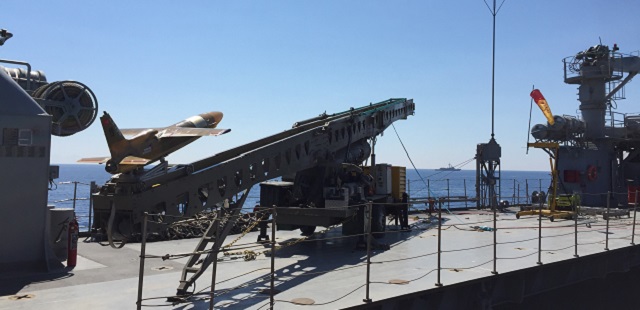

Take-off and control from ship

Şimşek systems are aerial vehicles that can be deployed to ships for missions over the sea and fly in all types of simulated air threats against ships to enable effective air defense for ships.

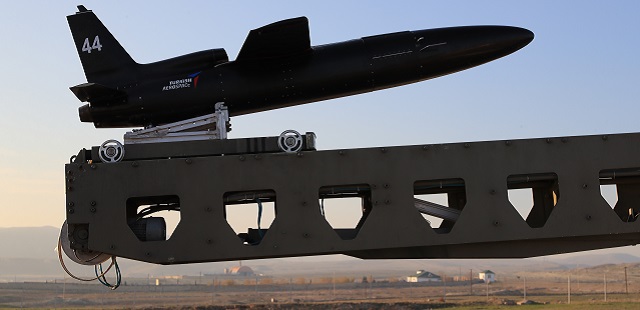

Structure produced with advanced composite technologies

Şimşek systems are aerial vehicles that can be deployed to ships for missions over the sea and fly in all types of simulated air threats against ships to enable effective air defense for ships.

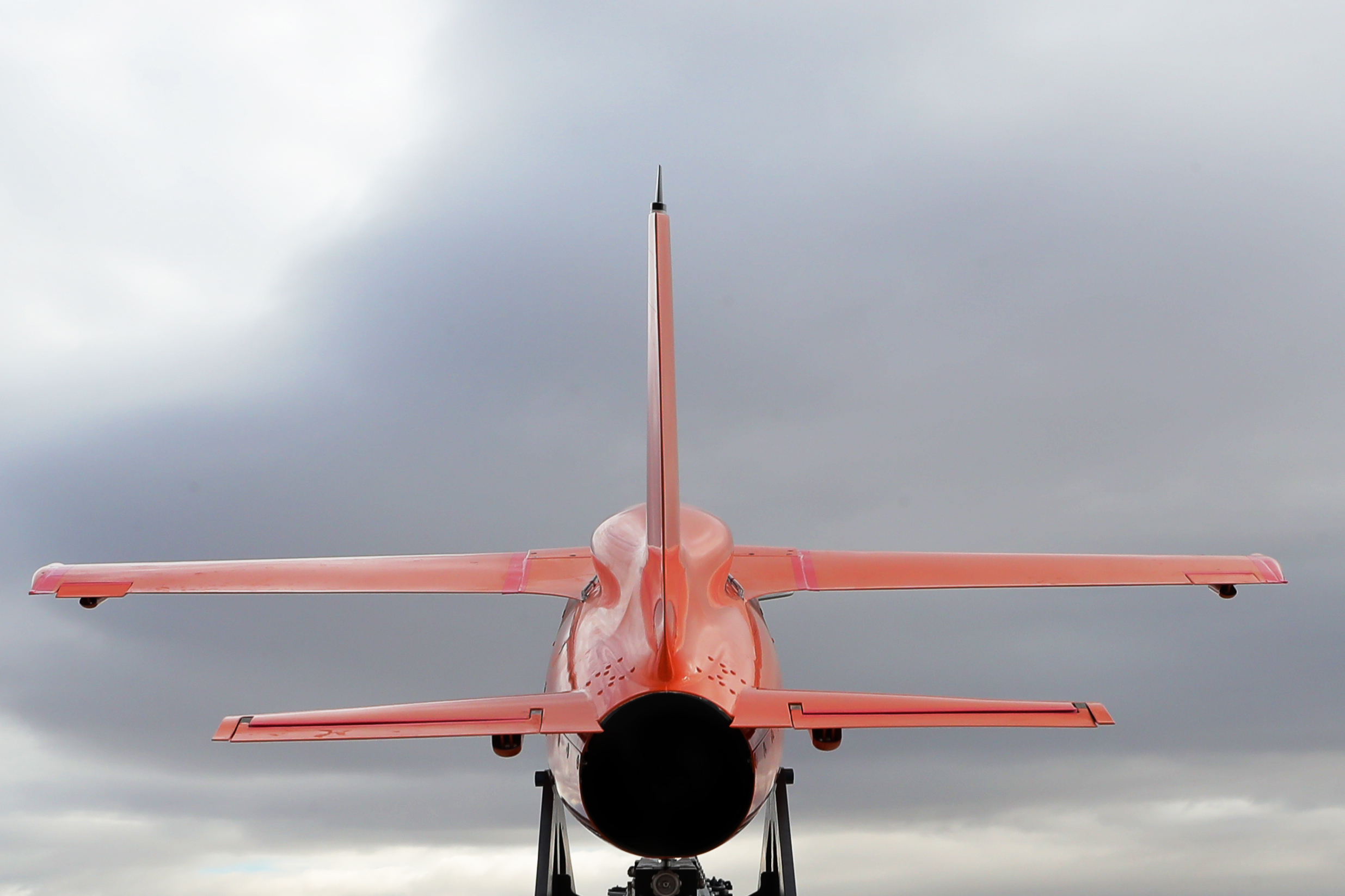

Jet Engine System

High acceleration and wide flight envelope with jet engine.

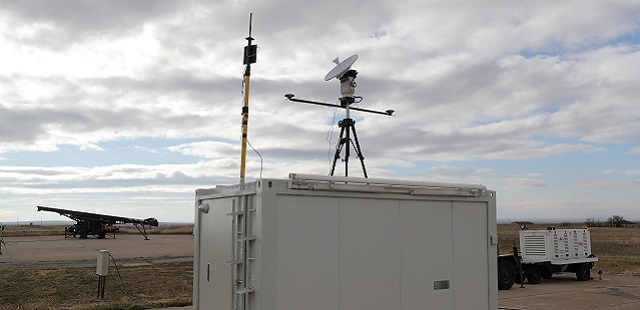

Radip deployment and outdoor operations compatibility

With portable systems, it can carry out missions anywhere users need. Offers effective service with precise planning, quick deployment and installation.

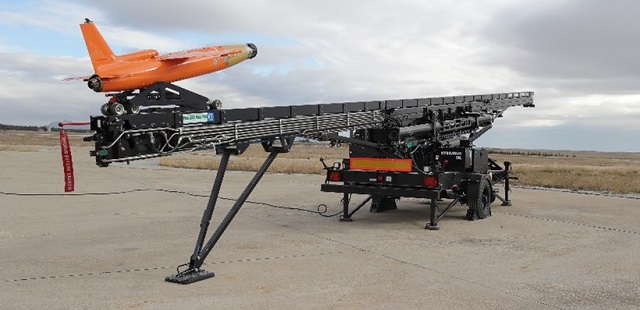

IR Signature Augmenter (Hot Nose) payload

By increasing its IR radiation, it is made easier for IR warhead weapons and sensors to detect the Şimşek aerial vehicle. This supports IR warhead weapons and sensors testing and training.

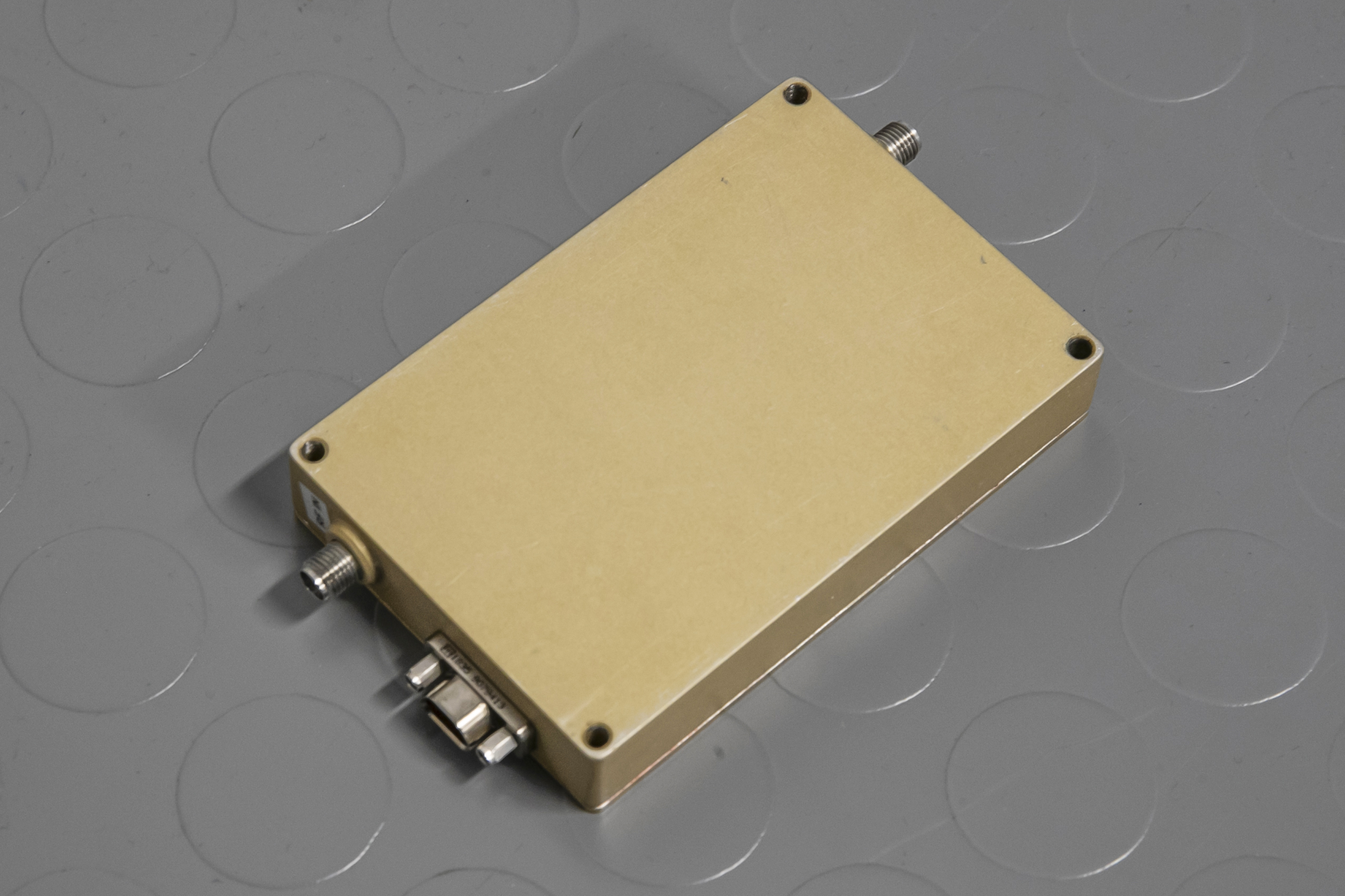

Active RKA enhancer

The Şimşek aerial vehicle enables enhancing the radar cross-section area in a wide frequency band and modifiable dimensions. It covers 5-18 Ghz band.

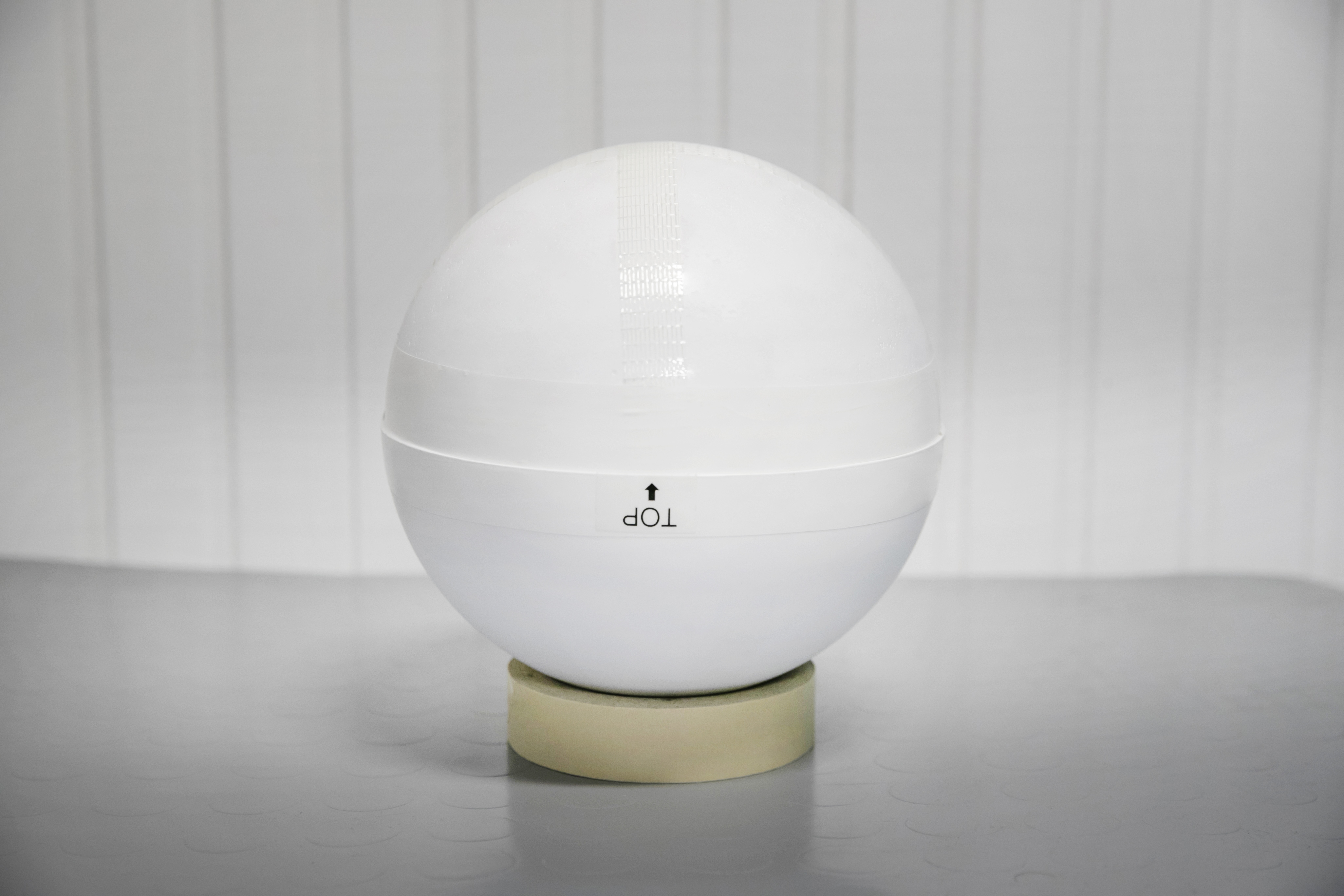

Passive RKA enhancer

The Şimşek aerial vehicle enables enhancing the radar cross-section area in a fixed frequency band and fixed dimensions.

Miss Distance Indicator

The Şimşek aerial vehicle, in fires shot at it, can measure the direction of the bullet or missile in relation to itself and at what distance it passes by.



TECHNICAL DATA
Dimensions And Weight
Performance
Features
Payloads
Wing Span
1,6 m
Length
2,3 m
Height
0,7 m
MTOW
70 kg (up to 90 kg from airborne carrier)
Payload Capacity
17 kg
Service Ceiling
25.000 ft
Maximum Speed
0,63 Mach
Endurance
50 minutes
Datalink Range
150 km (LOS)
Operating Range
700 km
Fully Autonomous Flight
Take-off from Launcher or Airborne Carrier
Parachute Recovery System
Reconfigurable Payload Options Based on Mission Requirements
Electronic Warfare Precautions
Pre- and In-Flight Mission Planning and Update Capability
RTB, Emergency and Automatic Landing Modes
Encrypted Digital Flight Data Recording
Swarm Technologies Combined with AI
Active/Passive Radar Cross Section Augmenter
Miss Distance Indicator (MDI)
IR Signature Augmenter (Hot Nose)
Countermeasure Delivery System / Chaff & Flare
Camera
Controlled Reception Pattern Antennas (CRPA)
