The “Multirole Heavy Combat Helicopter Project” was initiated as a result of the technological knowledge and operational experience gained through the T129 ATAK and T625 GÖKBEY Projects.

The Multirole Heavy Combat Helicopter Project is being designed entirely with domestic and national capabilities, targeting increased payload and ammunition capacity (1,200 kg excluding launchers), modern avionics systems, reduced logistical costs, and high performance.

In this context, Turkish Aerospace, with over half a century of experience and extensive aviation expertise, continues to carry out the project’s development efforts.

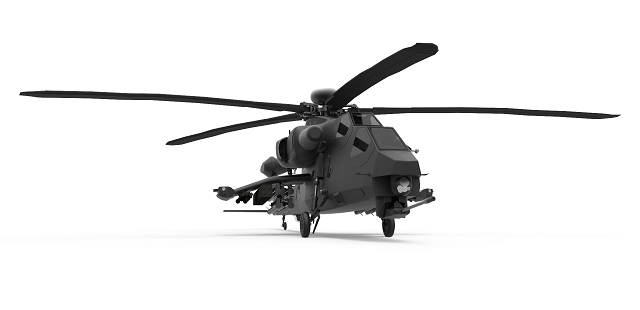

High-Temperature & Altitude Performance

Heavy Duty Attack Helicopter is designed for requirements for missions carried out in hot and elevated geographical conditions as well as inclement weather conditions.

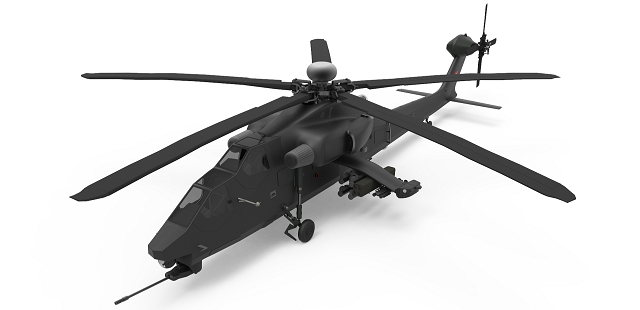

Advanced Avionics and High Munitions Carriage Capacity

Heavy Duty Attack Helicopters, with modern avionics systems, is planned to be more competitive and innovative compared to helicopters of similar classes. Heavy Duty Attack Helicopter, with a capacity of carrying 1200 kgs of munitions (excluding launchers), is designed to meet the operational needs.

TECHNICAL DATA

Dimensions And Weight

Performance

Power Plant

Features

Weapon Systems

Roles

Length (rotors turning)

20,2 m

Height

3,7 m

Main Rotor Diameter

16,7 m

MTOW

~11.000 kg

Crew

2 Pilot

Max Speed

175 KIAS

Range

255 nm

Endurance

~2,5+ hours

HIGE Ceiling

13.900 ft @MTOW

HOGE Ceiling

12.300 ft @MTOW

Rate of Climb

3.200 fpm

Service Ceiling

20.000 ft

2x Motorsich TV3-117VMA-SBM1V Turboshaft Engines

High Payload Capacity

Asymmetrical Loading Capability

Low IR and Acoustic Signature

Crashworthy and Ballistic Tolerant Design

Modern Avionics

State of the Art Glass Cockpit

Electronic Warfare

Armor Protection

Auxiliary Fuel Tank

6 Wing Stations (3 Stations on Each Wing)

Turreted Gun (750/1,000 Rounds)

Guided Anti-Tank Missiles

70 mm (2,75’’)Classic Rockets

70 mm (2,75’’) CİRİT® Laser Guided Missile

Air-to-Air Missiles

Radar Guided Missile

Laser Gun

Attack

Air-to-Ground Combat

Air-to-Air Combat

Armed Reconnaissance and Observation

Close Air Support

Armed Escort

JAAT Operation
